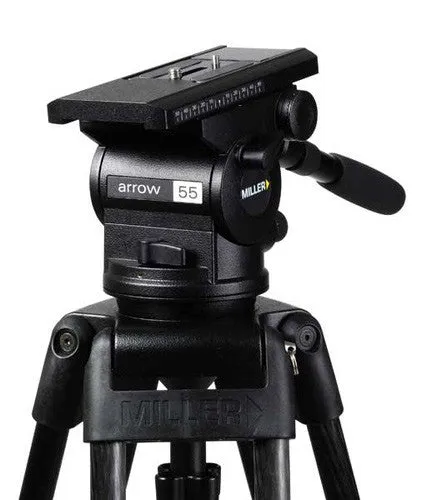

The Arrow 55 fluid head provides higher load capacity to suit documentary, lifestyle, HD productions and is particularly suited to long-lens applications of Studio EFP configurations. Also featuring 7 positions of pan and tilt drag; the Arrow55 is the heavy duty performer.
Features:
- Payload ranges from 10-25kg
- 7 (plus zero) positions of fluid pan and tilt drag
- 4 position of counterbalance
- 100mm Quick release sliding platform
- 100mm ball levelling
- Rear mounted controls
- White illumination of bubble level and indicators for pan and tilt
SPECIFICATIONS
- Payload Range: 10 to 25
- Payload Capacity: 25.00 kg (55.1 lbs)
- Weight: 3.20 kg (7.1 lbs)
- Camera Platform Type: Quick release and sliding platform
- Camera Plate: 1/4
- Mounting: 100mm ball leveling
- Tilt Drag: 7 selectable fluid drag positions 0
- Tilt Range: /-90°
- Tilt Lock: Calliper disc brake system
- Pan Drag: 7 selectable fluid drag positions 0
- Pan Range: 360°
- Pan Lock: Calliper disc brake system
- Counter balance System: 4 selectable positions
- Temperature Range: -40°C to 65°C
- Pan Handle: Telescopic
- Height Above Bowl: 162 mm (6.4 in)
- Illumination: Bubble level and pan/tilt indicators
